SD32 Shantui Buldozer şanzıman muhafazası 178-15-11130
178-15-11130 bulldozer transmission back housing

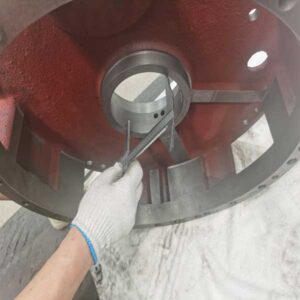

Construction machinery D1155A Bulldozer Transmission Housing 178-15-11130
Shantui D155A Bulldozer Transmission Housing 178-15-11130

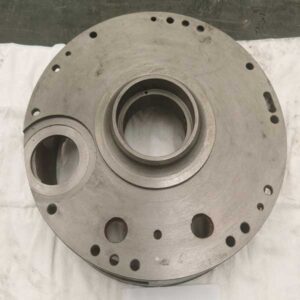

Shantui SD32 Şanzıman Gövdesi 178-15-11130
Shantui SD32 Şanzıman Gövdesi 178-15-11130
Part Name: Transmission Housing
Part Number: 178-15-11130
Machine Model: SD32
NO. | PART NO. | PART NAME | Q’TY |
0 | 175-15-00226 | Transmission case | 1 |
1 | 178-15-11130 | Housing | 1 |
2 | 234-15-12780 | Screw | 3 |
3 | 175-15-41140 | Plate | 1 |
4 | 145-14-11320 | Screw plug | 12 |
5 | 175-15-41150 | Piston cabin | 1 |
6 | 175-15-42890 | Spring, Waveform | 5 |
7 | 175-15-31210 | Pin, Dowel | 4 |
8 | 04020-01228 | Cylindrical pin | 12 |
9 | 07000-73022 | O-ring | 5 |
10 | 175-15-41310 | Collar | 1 |
11 | 04020-00616 | Cylindrical pin | 1 |
12 | 01010-51435 | Bolt M14*35 | 2 |
13 | 01602-01442 | Washer 14 | 8 |
14 | GB283-NU212C4 | Cylindrical roller bearing | 1 |
15 | 04064-06020 | Retainer ring | 1 |
16 | 175-15-42131 | Gear | 1 |
17 | 04064-08530 | Retainer ring | 1 |
18 | 175-15-42213 | Shaft | 1 |
19 | 145-14-12790 | Spring | 24 |
20 | 175-15-42850 | Sealing ring | 5 |
21 | GB276-61924 | Deep groove ball bearings | 1 |
22 | 130-09-16780 | Snap ring | 2 |
23 | 04070-00130 | Retainer ring | 1 |
24 | 175-15-42180 | Disk-shaped spring | 1 |
25 | 234-21-12180 | Nut | 1 |
26 | 175-15-42220 | Pin | 1 |
27 | 234-21-12190 | Shim | 1 |
28 | 234-21-12210 | Locking plate | 1 |
29 | 01010-50816 | Bolt M8*16 | 2 |
30 | 175-15-42340 | Oil baffle plate | 1 |
31 | 130-09-15740 | Snap ring | 1 |
32 | 175-15-42364 | Carrier | 1 |
33 | 175-15-42571 | Gear (Outer drum) | 1 |
34 | 01010-51490 | Bolt M14*90 | 6 |
35 | 175-15-42230 | Bolt, Hinge | 16 |
36 | 175-15-42240 | Locking plate | 8 |
37 | 175-15-42491 | Gear | 3 |
38 | 175-15-42552 | Shaft | 3 |
39 | 04260-00635 | Steel ball | 3 |
40 | 09232-03838 | Rulman | 3 |
41 | 09233-03820 | Thrust washer | 6 |
42 | 175-15-42650 | Gear ring | 1 |
43 | 175-15-42412 | Oil cylinder body | 1 |
44 | 04260-00952 | Steel ball | 2 |
45 | 175-15-42971 | Valve cover | 2 |
46 | 234-15-12790 | Screw plug | 2 |
47 | 175-15-42421 | Outer drum | 1 |
48 | 175-15-42430 | O-ring | 1 |
49 | 01010-51230 | Bolt M12*30 | 12 |
50 | 01602-21236 | Washer 12 | 12 |
51 | 01582-01210 | Nut M12*1.5 | 16 |
52 | 175-15-12715 | Friction disk | 13 |
53 | 175-15-42721 | Plate | 1 |
54 | 175-15-12750 | Sealing ring | 2 |
55 | 175-15-42870 | Piston | 1 |
56 | 195-15-12740 | Sealing ring | 1 |
57 | 154-15-12715 | Friction disk | 5 |
58 | 281-15-12720 | Tooth piece | 4 |
59 | 175-15-42740 | Piston | 1 |
60 | 175-15-42750 | Sealing ring | 1 |
61 | 234-15-11220 | Sealing ring | 1 |
More Info, Contact Us Please.
WhatsApp, Wechat : 0086 15553722299
